My Vdue upgrades 2016


Post new topic   Reply to topic    Bimota Forum Forum Index -> V Due
View previous topic :: View next topic
Author Message
mm500



Joined: 18 Feb 2014
Posts: 117
Location: Norway

PostPosted: Fri May 06, 2016 11:07 am    Post subject: My Vdue upgrades 2016 Reply with quote

My Vdue 2016 upgrades:



More info is comming.... 😉
_________________
Ducati 999R Xerox
Bimota V Due 500 evoluzione
Suzuki RG500
Aprilia RS250
Ducati 1198S (sold)
Ducati 1098 (sold)
Ducati 749S (sold)
Suzuki RGV 570 (sold)
Aprilia RS 250 (sold)
Back to top
View user's profile Send private message
JRH



Joined: 21 Jan 2013
Posts: 214
Location: West Mids/North East

PostPosted: Fri May 06, 2016 7:47 pm    Post subject: Reply with quote

Can't wait to here more, I've been looking at Zeeltronics for my Vdue or for a special I'm planning.....
Back to top
View user's profile Send private message
mm500



Joined: 18 Feb 2014
Posts: 117
Location: Norway

PostPosted: Fri May 06, 2016 9:56 pm    Post subject: Reply with quote

another picture Smile




_________________
Ducati 999R Xerox
Bimota V Due 500 evoluzione
Suzuki RG500
Aprilia RS250
Ducati 1198S (sold)
Ducati 1098 (sold)
Ducati 749S (sold)
Suzuki RGV 570 (sold)
Aprilia RS 250 (sold)
Back to top
View user's profile Send private message
driift



Joined: 05 Oct 2014
Posts: 32

PostPosted: Sat May 07, 2016 6:22 pm    Post subject: Reply with quote

Carb version?
Back to top
View user's profile Send private message
mm500



Joined: 18 Feb 2014
Posts: 117
Location: Norway

PostPosted: Sat May 07, 2016 8:04 pm    Post subject: Reply with quote

yes this is one of the last fully sorted bikes from Piero.

this is what I did to make it work:

New modified wire harnes ( did not want to cut in the original )
Zeeltronic PDCI-24V
2 new coil + homemade CF bracket ( you can use aprilia rs250 coils)

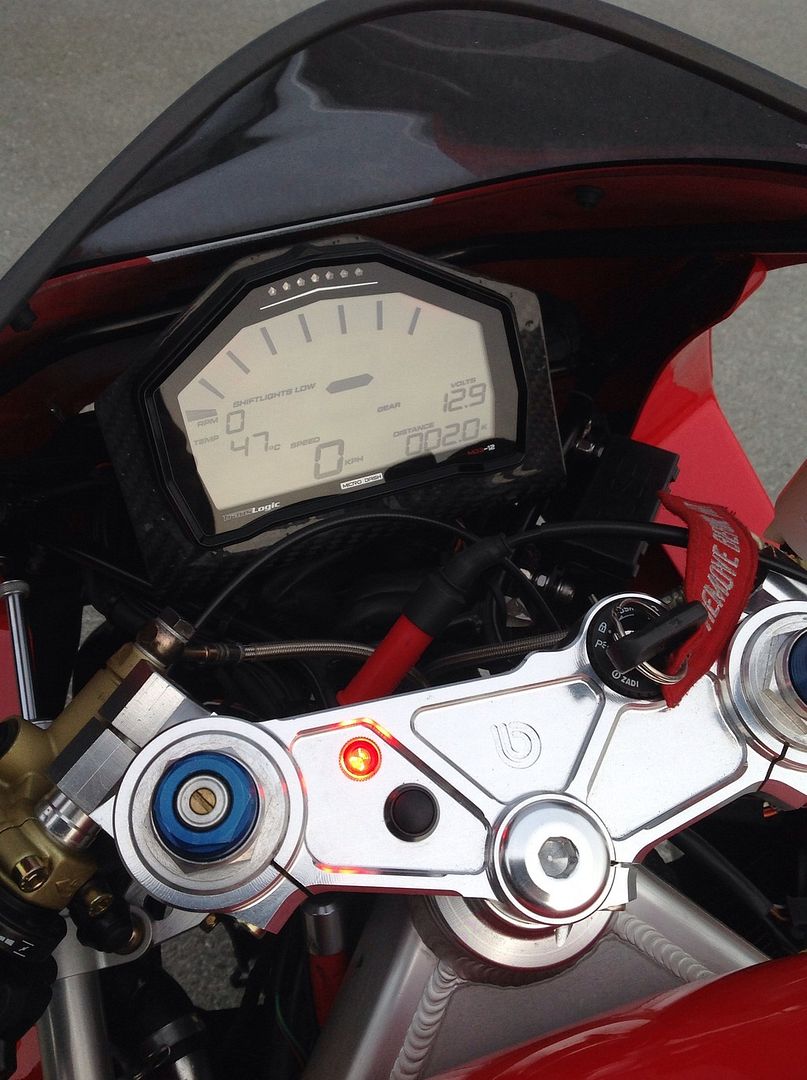

Translogic micro dash + homemade CF bracket
new rotor from Guido







_________________
Ducati 999R Xerox
Bimota V Due 500 evoluzione
Suzuki RG500
Aprilia RS250
Ducati 1198S (sold)
Ducati 1098 (sold)
Ducati 749S (sold)
Suzuki RGV 570 (sold)
Aprilia RS 250 (sold)
Back to top
View user's profile Send private message
2bims



Joined: 03 Apr 2010
Posts: 5433

PostPosted: Sat May 07, 2016 9:23 pm    Post subject: Reply with quote

Whats the purpose of what you;ve changed to what was there in the first place> I.e. what was wrong or that you felt wasnt right.....for each bit...and how does the new bits change/improve it?
Back to top
View user's profile Send private message
mm500



Joined: 18 Feb 2014
Posts: 117
Location: Norway

PostPosted: Sat May 07, 2016 10:25 pm    Post subject: Reply with quote

I felt the timing and exhaust valve curve could be improved.
The PDCI-24V is fully adjustable.
For the zeeltronic to work I needed new coils and a new dash.
The Translogic dash is a hughe improvment of the old one.

I have not had time to ride it, but when I do I wil give you an update.
_________________
Ducati 999R Xerox
Bimota V Due 500 evoluzione
Suzuki RG500
Aprilia RS250
Ducati 1198S (sold)
Ducati 1098 (sold)
Ducati 749S (sold)
Suzuki RGV 570 (sold)
Aprilia RS 250 (sold)
Back to top
View user's profile Send private message
vort28



Joined: 22 Mar 2010
Posts: 1896
Location: Northwest , UK

PostPosted: Mon May 09, 2016 12:21 pm    Post subject: Reply with quote

Will be very interested in hearing about the riding experience .
Back to top
View user's profile Send private message
mm500



Joined: 18 Feb 2014
Posts: 117
Location: Norway

PostPosted: Mon Aug 29, 2016 7:48 am    Post subject: Reply with quote

Had a test drive to the local Cars and Coffe yesterday, and the bike is faster!
Stil needs the some jetting changes.

This is my current settings:

Right:

220
120
60
350
-K83
-2 turns out

Left:

220
120
60
350
-k76
-2,5 turns out


_________________
Ducati 999R Xerox
Bimota V Due 500 evoluzione
Suzuki RG500
Aprilia RS250
Ducati 1198S (sold)
Ducati 1098 (sold)
Ducati 749S (sold)
Suzuki RGV 570 (sold)
Aprilia RS 250 (sold)
Back to top
View user's profile Send private message
