Tirefriar
Joined: 18 Dec 2014 Posts: 659 Location: USA
|
Posted: Thu Feb 25, 2016 3:40 pm Post subject: |
|
|
Gentlemen, thank you so much for the wealth of information. Here's what I'm thinking - I will check the breather hoses once again because after I plugged them into the small plastic tube retainer (I will take the picture once I'm there again) the leaking stopped. The culprit originally was the left hose.
If indeed it is still leaking, I will try to tap on the carbs in hopes of dislodging any spec of dirt there. If that doesn't work, it will need to have a specialist to be looked at. I am also installing a fuel filter (or filters) at the same time.
Jonny, your configuration with the breather hoses ou dos very interesting. Please post a picture or two when you get a chance. _________________ 1991 Bimota YB10
2001 MV F4
2003 Aprilia RSV Mille CE Replica
2004 BMW R11S BCR
2010 Ducati Streetfighter 1098 S |
|
Back to top |
|
|
Admin Site Admin
Joined: 22 Oct 2007 Posts: 508 Location: Stafford, UK
|
Posted: Mon Feb 29, 2016 9:17 pm Post subject: |
|
|
Hi

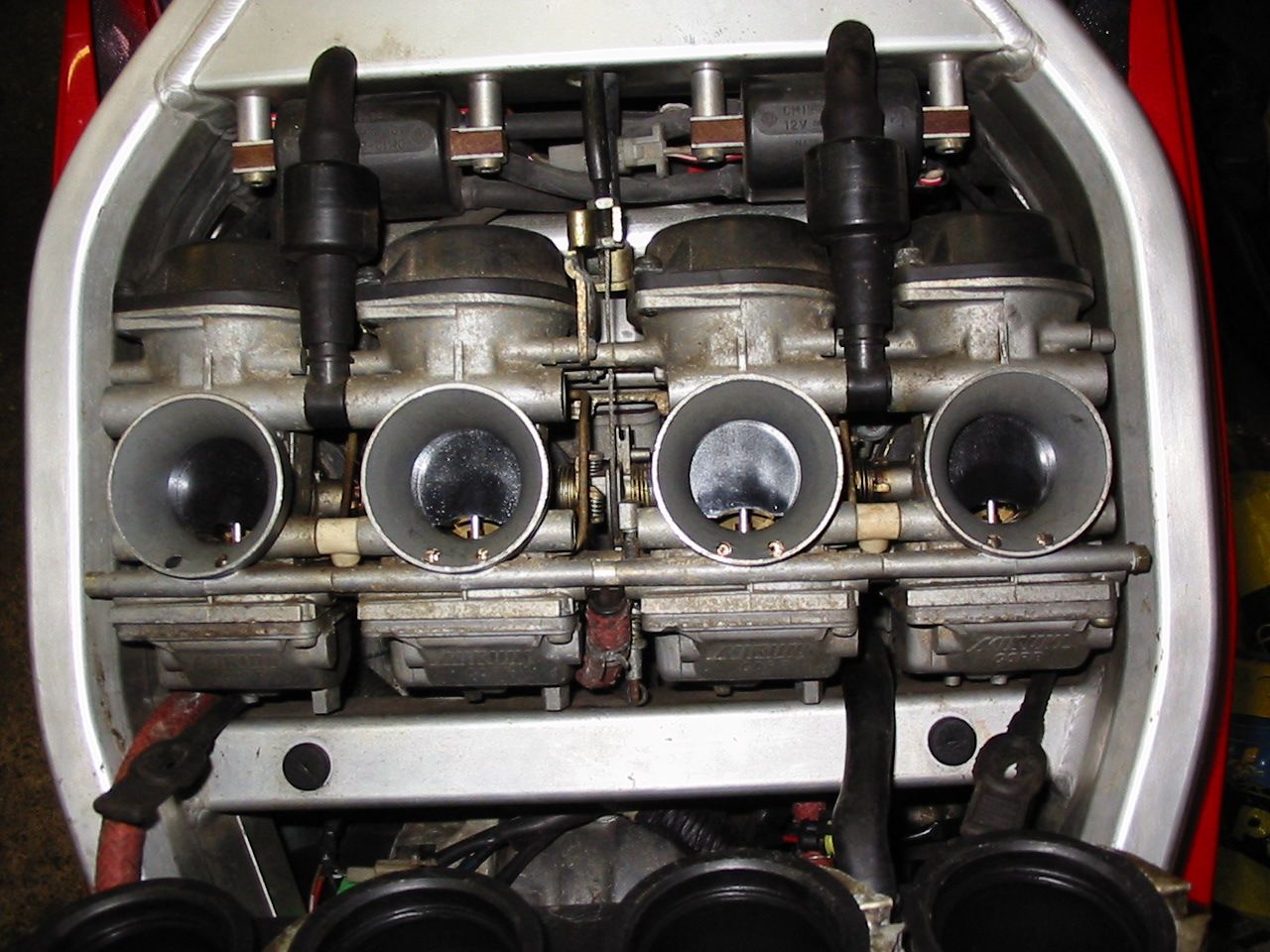

On mine the breathers (one between carbs 1& 2, the other between 3 & 4) go forward into a small plastic canister, and then from there another pair of hoses run forward into the airbox intake area of the frame behind the head stock.
You can see here:-
Al the best
Katy |
|
Back to top |
|
|
Tirefriar
Joined: 18 Dec 2014 Posts: 659 Location: USA
|
Posted: Tue Mar 01, 2016 6:16 am Post subject: |
|
|
Thanks for the pick. Did you have to drill the openings in the frame? I don't see a breather tube to the air box. _________________ 1991 Bimota YB10
2001 MV F4
2003 Aprilia RSV Mille CE Replica
2004 BMW R11S BCR
2010 Ducati Streetfighter 1098 S |
|
Back to top |
|
|
Jonny B Bad
Joined: 05 Dec 2009 Posts: 555 Location: NE London
|
Posted: Tue Mar 01, 2016 9:43 pm Post subject: YB10 carb breathers |
|
|
Those are the under slide breathers. You should also have a pair like that George, but you're talking about the float bowl breathers. I'll try and get a picture of mine up when I get back to the UK. But this picture does illustrate my point that these breathers are vented to the chamber from which the carbs take their air, via the air filter. _________________ What, Jonny's gone! |
|
Back to top |
|
|
Jonny B Bad
Joined: 05 Dec 2009 Posts: 555 Location: NE London
|
Posted: Tue Mar 01, 2016 9:48 pm Post subject: YB10 carb breathers |
|
|
The float bowl breathers are the hoses that come off the two white nylon tee pieces which you can see sitting under the tee pieces for the under slide breathers in the picture. _________________ What, Jonny's gone! |
|
Back to top |
|
|
Tirefriar
Joined: 18 Dec 2014 Posts: 659 Location: USA
|
Posted: Tue Mar 01, 2016 10:19 pm Post subject: |
|
|
You are right. The one leaking on mine was a float bowl breather on the left side (in the picture).
I unplugged it from the black "breather" bolted to the side of the block (hard to see in the picture) to see if it still leaked, but it didn't. Problem solved, for now. My next step is to add fuel filters to avoid the problem in the future _________________ 1991 Bimota YB10
2001 MV F4
2003 Aprilia RSV Mille CE Replica
2004 BMW R11S BCR
2010 Ducati Streetfighter 1098 S |
|
Back to top |
|
|
Tirefriar
Joined: 18 Dec 2014 Posts: 659 Location: USA
|
Posted: Tue Mar 01, 2016 10:19 pm Post subject: |
|
|
You are right. The one leaking on mine was a float bowl breather on the left side (in the picture).
I unplugged it from the black "breather" bolted to the side of the block (hard to see in the picture) to see if it still leaked, but it didn't. Problem solved, for now. My next step is to add fuel filters to avoid the problem in the future _________________ 1991 Bimota YB10
2001 MV F4
2003 Aprilia RSV Mille CE Replica
2004 BMW R11S BCR
2010 Ducati Streetfighter 1098 S |
|
